I. Introduction
When your car’s performance starts to decline or warning lights illuminate on the dashboard, it’s natural to feel concerned. Fortunately, the On-Board Diagnostics (OBD2) system in your vehicle is a valuable tool for diagnosing issues. The CR720 OBD2 scanner is an accessible and reliable tool that can help you read diagnostic trouble codes (DTCs) from your vehicle’s computer, giving you the insight needed to pinpoint the source of the problem. In this article, we’ll explore how to use CR720 OBD2 codes to diagnose issues, interpret the results, and make informed decisions about repairing your car.
II. What is an OBD2 Code and How Does It Work?
OBD2 stands for On-Board Diagnostics, second generation, a system introduced in 1996 to monitor a vehicle’s various components. It constantly checks the performance of the engine, transmission, exhaust, and other systems, logging codes whenever it detects a malfunction. These codes are crucial because they provide a standardized way to pinpoint the issue, whether it’s a minor sensor malfunction or a more serious engine problem.

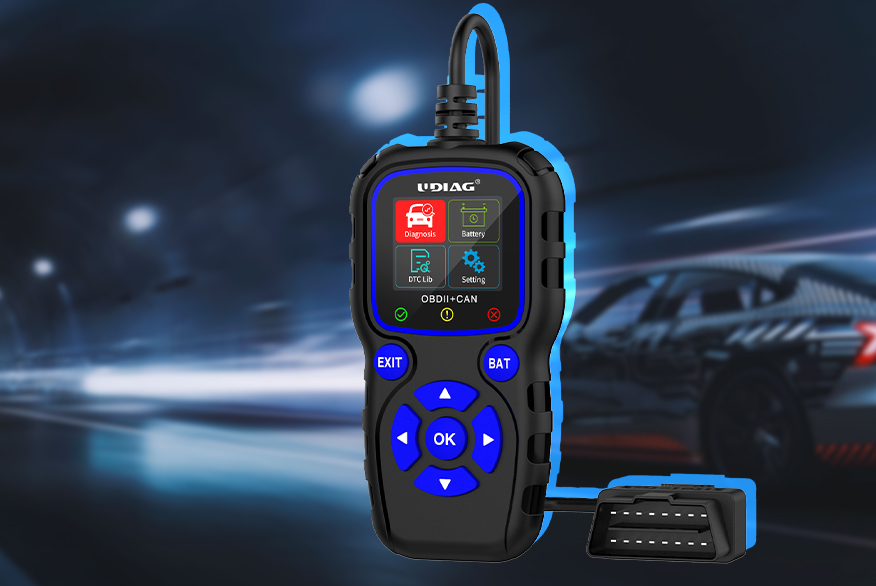

The CR720 scanner can read these codes directly from your vehicle’s OBD2 port. This allows you to easily interpret the underlying problem and decide how to address it. The CR720 is compatible with most vehicles manufactured since 1996, making it a versatile tool for car enthusiasts and DIY mechanics.
III. How to Use the CR720 to Diagnose Car Issues
Using the CR720 OBD2 scanner is simple. First, plug the scanner into your car’s OBD2 port, typically located under the dashboard, near the driver’s seat. Turn on your car’s ignition, but don’t start the engine. Power up the CR720, and follow the on-screen instructions to begin the scan. The scanner will retrieve and display any trouble codes stored in your vehicle’s computer. These codes are usually alphanumeric (e.g., P0300, P0420), and each corresponds to a specific fault or malfunction.
Once the CR720 displays the codes, it provides you with a definition of each one, explaining what it means and which system or component is affected. Common codes include P0300 for random misfires, P0420 for a malfunctioning catalytic converter, and P0171 for a lean fuel mixture. The CR720 also offers live data streaming, allowing you to monitor real-time data from your car’s sensors. This can be especially helpful for spotting intermittent issues that might not trigger a code right away.
IV. What Can OBD2 Codes Tell You About Your Car?
OBD2 codes are designed to help identify a wide range of car problems, from minor issues to major malfunctions. Engine misfires, for example, can be diagnosed with codes like P0300. These misfires can be caused by faulty spark plugs, spark plug wires, or ignition coils. Similarly, issues with the oxygen sensor often trigger codes like P0130, which can lead to poor fuel economy and increased emissions if left unchecked. Problems with the exhaust system, including catalytic converter failure, are often indicated by codes such as P0420. Transmission-related issues might also trigger OBD2 codes, signaling problems with sensors, fluid levels, or other components.
Understanding these codes is vital for effective car maintenance. The CR720 makes it easy to interpret the data by providing definitions and explanations for each code. By using this information, you can address the underlying issues before they lead to more expensive repairs or breakdowns.
V. Interpreting the CR720’s Results
After the CR720 retrieves the diagnostic codes, it displays both the codes themselves and additional data. This includes freeze frame data, which captures a snapshot of your vehicle’s conditions at the time the code was triggered. Freeze frame data can be especially helpful in diagnosing problems that occur intermittently or under specific conditions, such as during acceleration or when the engine is cold.
The CR720 also shows live data, allowing you to monitor sensor readings in real time. For example, you can track engine RPM, fuel trims, oxygen sensor readings, and other critical parameters as your car runs. This live data can help you identify patterns or inconsistencies that might not trigger a trouble code but could indicate a developing issue.
For example, if the CR720 shows that the engine is running at unusually high RPM or that the oxygen sensor readings are erratic, it could point to an issue with the engine control module (ECM) or a sensor malfunction. This deeper analysis helps you avoid unnecessary repairs by pinpointing the exact cause of the problem.
VI. What to Do After Diagnosing the Problem
Once you’ve diagnosed the issue using the CR720, it’s time to take action. Depending on the severity of the problem, you may be able to fix it yourself, especially if it involves something simple like replacing a faulty oxygen sensor or spark plugs. However, more complex issues, such as those related to the transmission or engine control system, might require professional help. If you’re unsure, it’s always a good idea to consult a mechanic to get a second opinion.
After making repairs, you can use the CR720 to clear the codes from your vehicle’s computer. This signals that the issue has been addressed and allows the system to perform a new round of tests to confirm the problem is resolved. It’s important to remember that clearing the codes without repairing the issue will often cause the problem to resurface, as the system will detect the same fault again and trigger the code.
VII. Comparing the CR720 with Other OBD2 Scanners
While there are many OBD2 scanners on the market, the CR720 stands out for its combination of features, affordability, and ease of use. Compared to other tools, the CR720 offers a more intuitive interface, clear definitions of codes, and a wide range of compatible vehicles. While higher-end models might offer additional features like ABS or airbag system diagnostics, the CR720 is perfectly suited for diagnosing engine and transmission issues, making it ideal for most car owners.
Another advantage of the CR720 is its affordability. It provides a robust set of features without the hefty price tag of professional-grade tools, making it an excellent choice for DIY mechanics or anyone looking to monitor their vehicle’s health.
VIII. Maintaining Your CR720 Scanner
To keep your CR720 in top shape, regular maintenance is essential. One of the best ways to ensure longevity is by updating the software. This ensures that the scanner stays compatible with the latest vehicle models and diagnostic codes. Additionally, store your CR720 in a safe, dry place to prevent damage from moisture or extreme temperatures.
Conclusion
In conclusion, using the CR720 OBD2 scanner is an efficient way to diagnose car problems and perform basic troubleshooting. With its easy-to-read display, live data streaming, and wide vehicle compatibility, the CR720 allows you to quickly identify issues and make informed decisions about repairs. Whether you’re a DIY mechanic or simply want to keep your car in optimal condition, the CR720 is an essential tool for modern car maintenance.
FAQs
1. What does it mean if my OBD2 scanner shows multiple codes?
Multiple codes usually indicate several issues that need addressing. It’s important to prioritize the most critical problem and repair that first.
2. Can the CR720 diagnose all car models?
The CR720 works with most vehicles manufactured after 1996. However, some newer models or specific brands may have limited compatibility, so always check before purchase.
3. How do I reset my car’s check engine light using the CR720?
After repairing the issue, use the “Clear Codes” feature in the CR720 to reset the check engine light and erase stored trouble codes from the vehicle’s computer.
4. What should I do if I get an “unknown code” on my CR720?
If you receive an unknown code, refer to the CR720’s manual or search online for more information. If necessary, consult a professional mechanic for assistance.
5. Is the CR720 compatible with hybrid or electric vehicles?
Yes, the CR720 is compatible with many hybrid and electric vehicles, though certain specialized systems might require additional tools for diagnosis.
