Introduction
The On-Board Diagnostics II (OBD2) system is a crucial component in modern vehicles, designed to monitor and report on various engine and vehicle performance parameters. Understanding OBD2 codes is essential for vehicle owners and mechanics alike, as these codes provide valuable insights into potential issues affecting the engine’s performance. This essay explores how to effectively use OBD2 codes to diagnose engine problems, empowering car owners to take informed actions toward repairs.
I. Required Tools

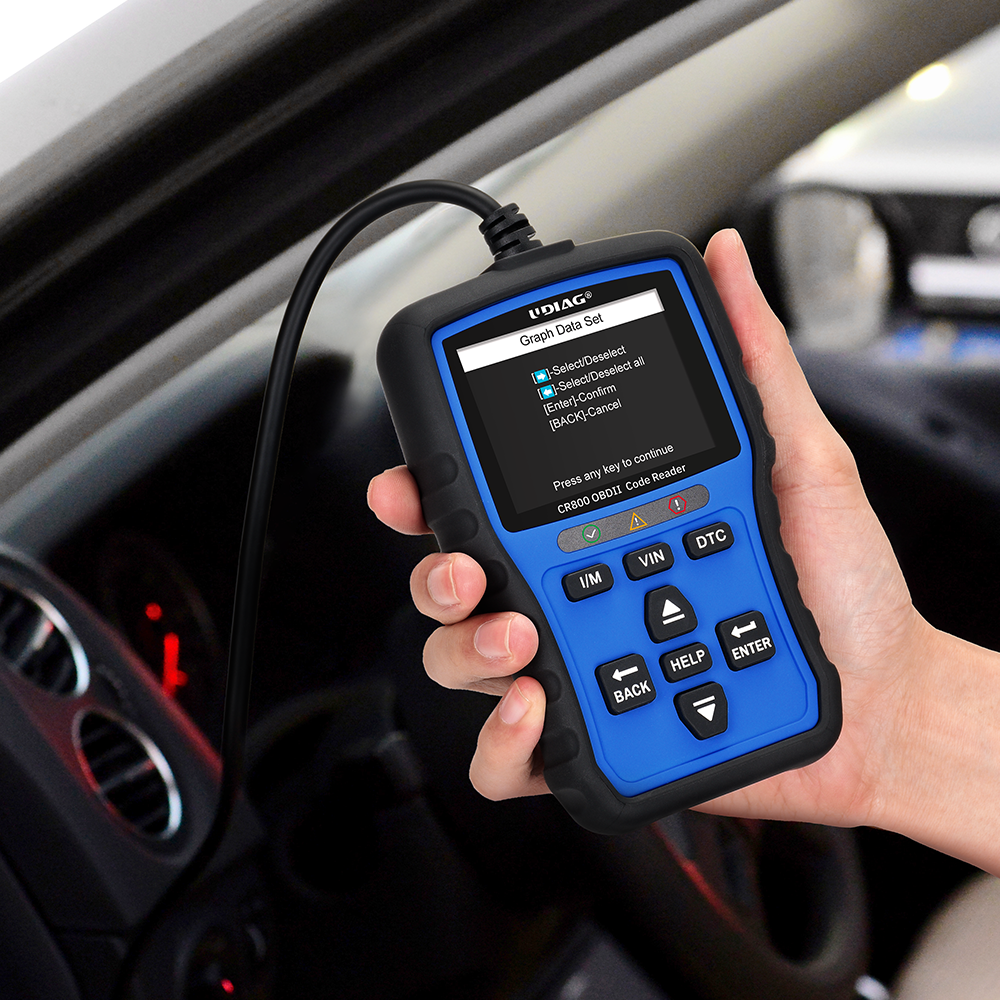

To begin diagnosing engine issues using OBD2 codes, you will need an OBD2 scanner. These devices come in various forms, from basic handheld models that read and display trouble codes to more advanced professional scanners capable of providing live data and extensive diagnostic information. Additionally, some smartphone apps can connect to OBD2 adapters via Bluetooth, offering a convenient alternative for tech-savvy users.
II. Locating the OBD2 Port
The next step is to locate the OBD2 port in your vehicle. Typically found beneath the dashboard on the driver’s side, near the steering column, this port has a distinctive trapezoidal shape. Familiarizing yourself with its location is essential for quick access when diagnosing issues.
III. Connecting the OBD2 Scanner
Once you have located the OBD2 port, connect your scanner by plugging it into the port. It is important to turn off the ignition before connecting the device. After securing the connection, turn the ignition key to the “on” position without starting the engine. This action powers up the scanner and prepares it for use.
IV. Reading Diagnostic Trouble Codes (DTCs)
With the scanner connected and powered on, follow the instructions provided by your specific device to initiate a scan. The scanner will communicate with your vehicle’s onboard computer and display a series of alphanumeric codes known as Diagnostic Trouble Codes (DTCs). These codes represent specific issues detected within various systems of your vehicle.
V. Understanding OBD2 Code Structure
OBD2 codes are structured in a five-character format that conveys critical information about the nature of the problem. The first character indicates the system affected (e.g., “P” for powertrain), while the second character denotes whether it is a generic code (0) or manufacturer-specific (1). The third character identifies the specific subsystem involved, and the fourth and fifth characters provide a specific fault index. For example, a code like P0301 indicates a misfire in cylinder #1.
VI. Interpreting OBD2 Codes
After retrieving DTCs, it’s essential to interpret them accurately. Utilize online resources or repair manuals to look up each code’s meaning. Additionally, many scanners provide freeze frame data—information about engine conditions at the time of fault detection—which can be invaluable for understanding what may have triggered the code.
VII. Conducting Further Diagnostics
Based on the retrieved codes, you may need to conduct further diagnostics. For instance, if you receive a code indicating a misfire (e.g., P0301), you might check spark plugs, ignition coils, or fuel injectors associated with that cylinder. Verifying issues through additional testing is crucial before proceeding with repairs; this helps ensure that you address the root cause rather than just symptoms.
VIII. Addressing Identified Issues
Once you have identified potential issues based on DTCs and further diagnostics, it’s time to consider repairs. Common fixes may include replacing faulty sensors, repairing vacuum leaks, or addressing fuel delivery problems. While some repairs can be tackled by DIY enthusiasts with basic mechanical skills, others may require professional assistance—especially those involving complex systems or significant disassembly.
IX. Clearing Codes After Repairs
After addressing any identified issues, use your scanner to clear trouble codes from your vehicle’s computer. This process resets the system and allows you to monitor whether any new codes appear during subsequent drives. It is important not to clear codes until you are confident that all issues have been resolved; otherwise, you may miss recurring problems.
Conclusion
Using OBD2 codes to diagnose engine issues is an empowering skill for vehicle owners. By following a systematic approach—from gathering necessary tools and locating the OBD2 port to interpreting codes and conducting further diagnostics—car owners can take proactive steps toward maintaining their vehicles effectively. Familiarity with OBD2 codes not only enhances understanding of vehicle performance but also promotes informed decision-making regarding repairs and maintenance.
FAQs
1. What are OBD2 codes?
OBD2 codes, or On-Board Diagnostics II codes, are standardized codes generated by a vehicle’s onboard computer when it detects a malfunction in the engine or other systems. These codes help identify specific issues that need attention.
2. How do I read OBD2 codes?
To read OBD2 codes, you need an OBD2 scanner. Connect the scanner to the vehicle’s OBD2 port (usually located under the dashboard), turn on the ignition, and follow the scanner’s instructions to retrieve the diagnostic trouble codes (DTCs).
3. What do the characters in an OBD2 code mean?
An OBD2 code consists of five characters. The first character indicates the system affected (P for powertrain, C for chassis, B for body, U for network issues), the second character denotes whether it’s a generic (0) or manufacturer-specific (1) code, and the remaining characters specify the exact fault.
4. What should I do if my check engine light comes on?
If your check engine light illuminates, use an OBD2 scanner to retrieve the trouble codes. This will help you determine the underlying issue. If the light is flashing, it indicates a severe problem that requires immediate attention.
5. Can I clear OBD2 codes after repairs?
Yes, after addressing any identified issues, you can use your OBD2 scanner to clear the trouble codes from your vehicle’s computer. This resets the system and allows you to monitor for any new codes during subsequent drives.
6. What is freeze frame data?
Freeze frame data captures engine conditions at the time a fault was detected. This information can provide additional context for diagnosing issues and understanding what may have triggered a specific code.
7. Are all DTCs universal across all vehicles?
No, while many DTCs are standardized and apply to all vehicles following the OBD-II international standard, some codes are manufacturer-specific and may vary between different makes and models.
