ADAS-B Calibration Tool
– All-in-One Calibration for radar, camera & LiDAR systems
– Multi-Brand Coverage: Benz, BMW, Toyota, Honda, BYD, VW & more
– Foldable& space-saving design for easy storage
– Complete accessory kit with laser & calibration targets
– Compatible with Dtronic, Meta, Langren & Special Inspect systems
– Precision alignment for accurate ADAS calibration
UDIAG ADAS-B is a comprehensive all-in-one calibration system for automotive advanced driver assistance systems. It combines a foldable radar calibration set, full camera target kit, and multi-function main bracket to calibrate radar, camera, LiDAR, and 360-degree surround view systems. It supports ACC, LDW, BSM, parking assist, and pre-collision calibration, delivering OEM-level precision across major vehicle brands. Designed for workshops, it works with multiple diagnostic platforms for reliable, multi-system alignment.
Features
All-in-One ADAS Coverage
Supports radar, camera, and LiDAR calibration for ACC, LDW, AVM, RCW, BSM, parking assist, and pre-collision systems.
1. Adaptive Cruise Control (ACC)
Control system to automatically adjust vehicle speed to maintain a safe distance from vehicles ahead. Control is based on sensor information from on-board sensors.
2. Lane Departure Warning (LDW)
Warns driver when vehicle begins to move out of freeway lane. Designed to minimize causes collisions: driver error, distractions and drowsiness.
3. Around View Monitoring (AVM)
Provides a virtual 360-degree scene of the car in bird’s-eye view. It assists drivers to park more easily by better understanding the vehicle’s surroundings.
4. Rear Collision Warning (RCW)
Braking at standstill to avoid rear-end collisions. Alert when engine started and cannot turn off. Warn driver of vehicle approach from behind by rapid signal flash.
Folding Main Frame Design
Movable base, adjustable beam, and foldable structure for easy transport and storage.
Wide Vehicle Compatibility
Works with major brands including Mercedes-Benz, BMW, Toyota, Honda, BYD, and Volkswagen.
Complete Accessory Package
Includes laser device, centering tools, Doppler simulator, calibration boards, and targets.
Multi-Brand Camera Targets

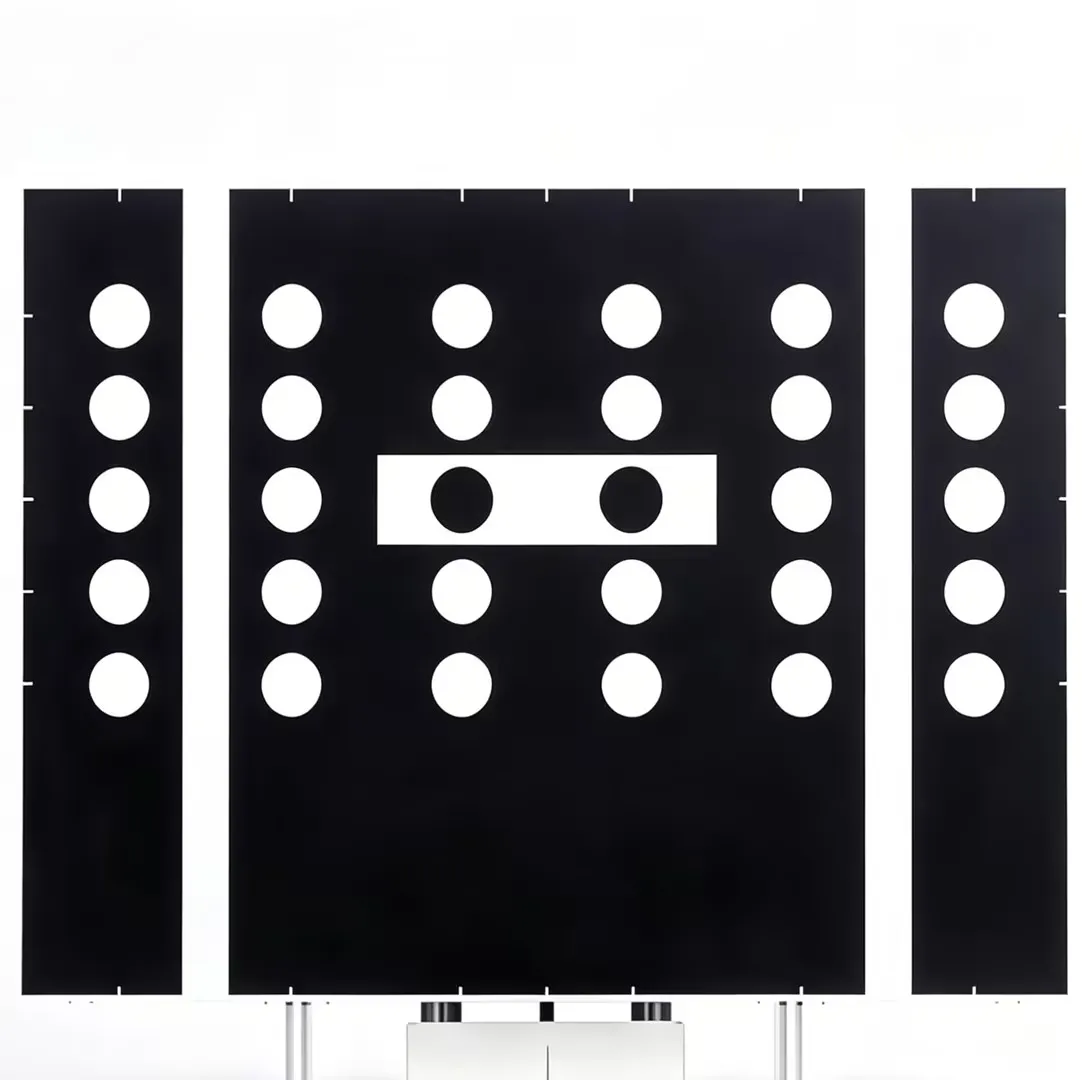

Dedicated LDW calibration boards for Honda, Toyota/Lexus, Mazda, Nissan/Infiniti, Geely, BYD, Volkswagen/Audi, and Hyundai/Kia.
Flexible System Integration
Compatible with Dtronic (no activation), Meta, Langren, and Special Inspect platforms.
Precision Alignment Tools
Equipped with leveling kits, laser reflectors, and centering devices for accurate setup.
Compact & Space-Saving
Foldable structure with a minimum height of 1.2 m for convenient workshop use.
Advantages
- All-in-One Calibration for radar, camera & LiDAR systems
- Multi-Brand Coverage: Benz, BMW, Toyota, Honda, BYD, VW & more
- Foldable & space-saving design for easy storage
- Complete accessory kit with laser & calibration targets
- Compatible with Dtronic, Meta, Langren & Special Inspect systems
- Precision alignment for accurate ADAS calibration
Component | Description |
Multi-Function Foldable Main Bracket | Adjustable beam, movable base with wheels, foldable design for compact storage; minimum height 1.2 m |
Radar Calibration Full Set | ACC reflective plate, laser reflector, leveling foot kit with radar adjustment wrench |

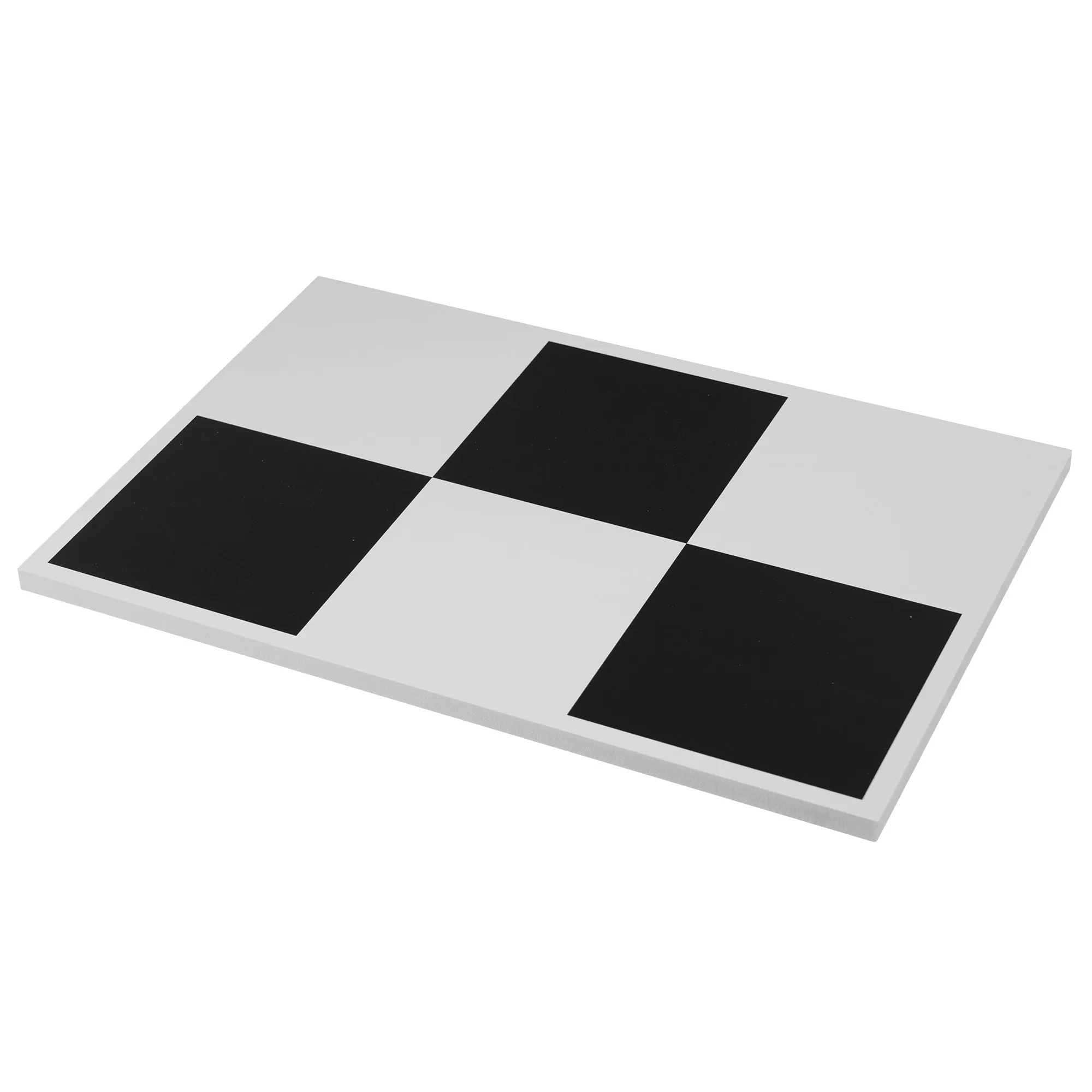

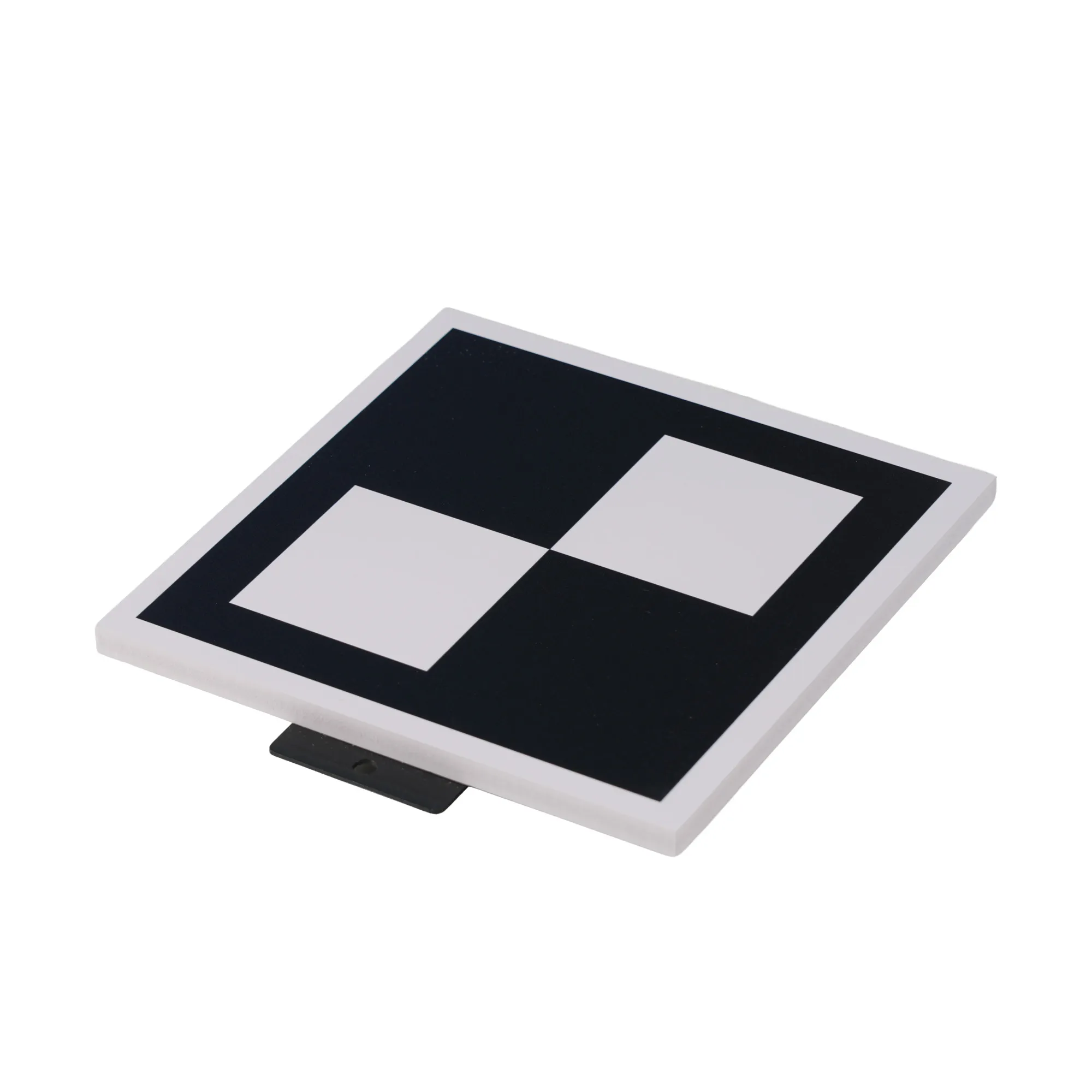

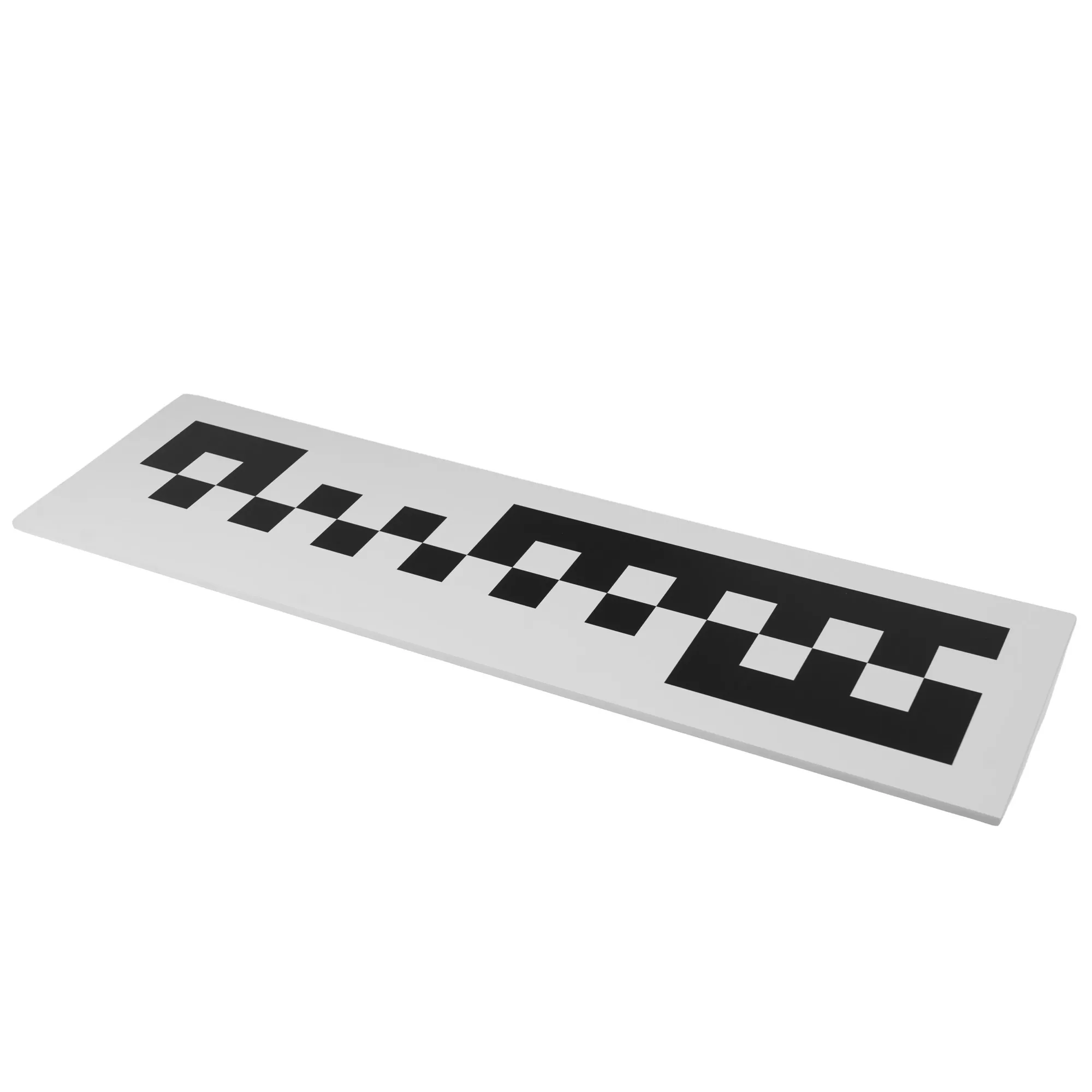

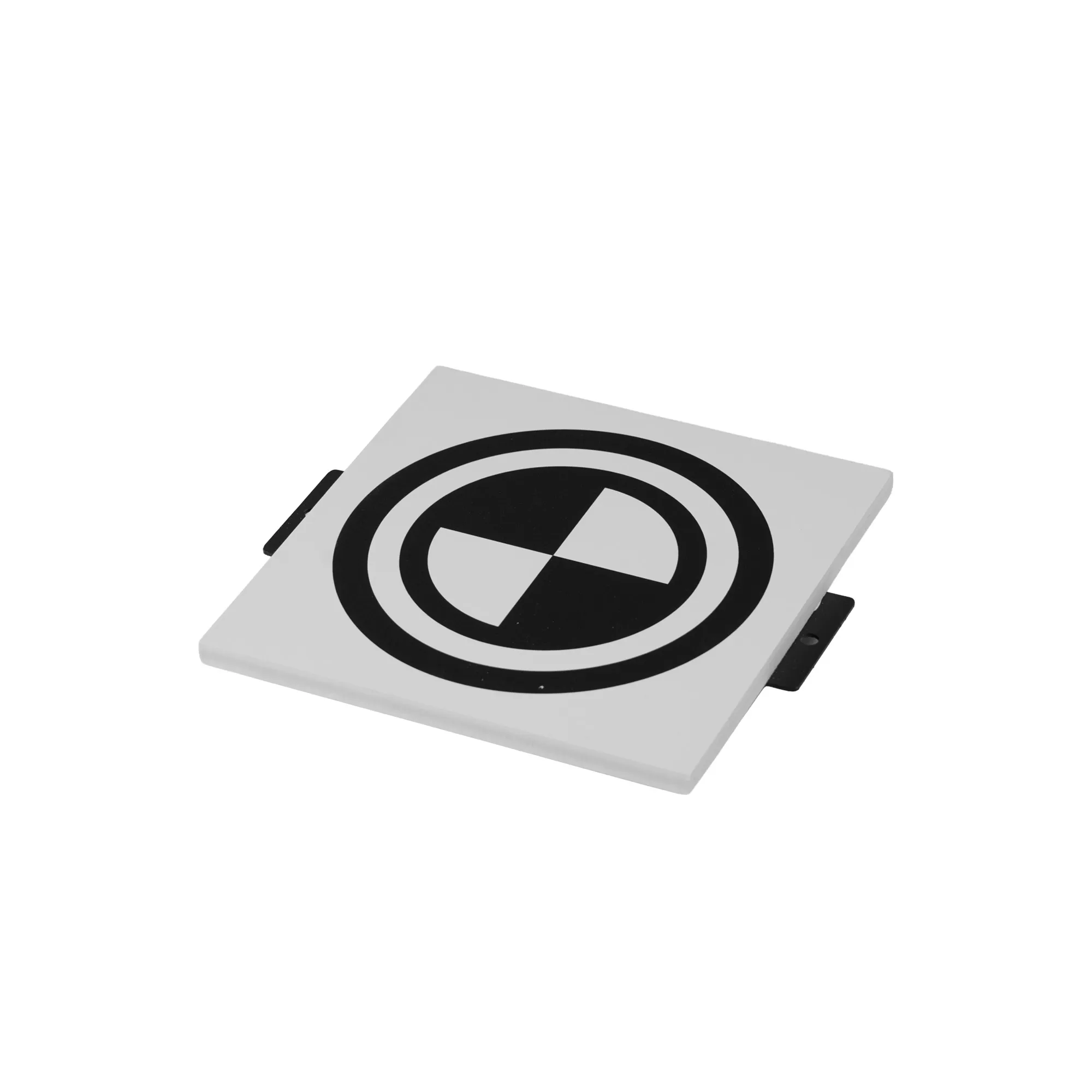

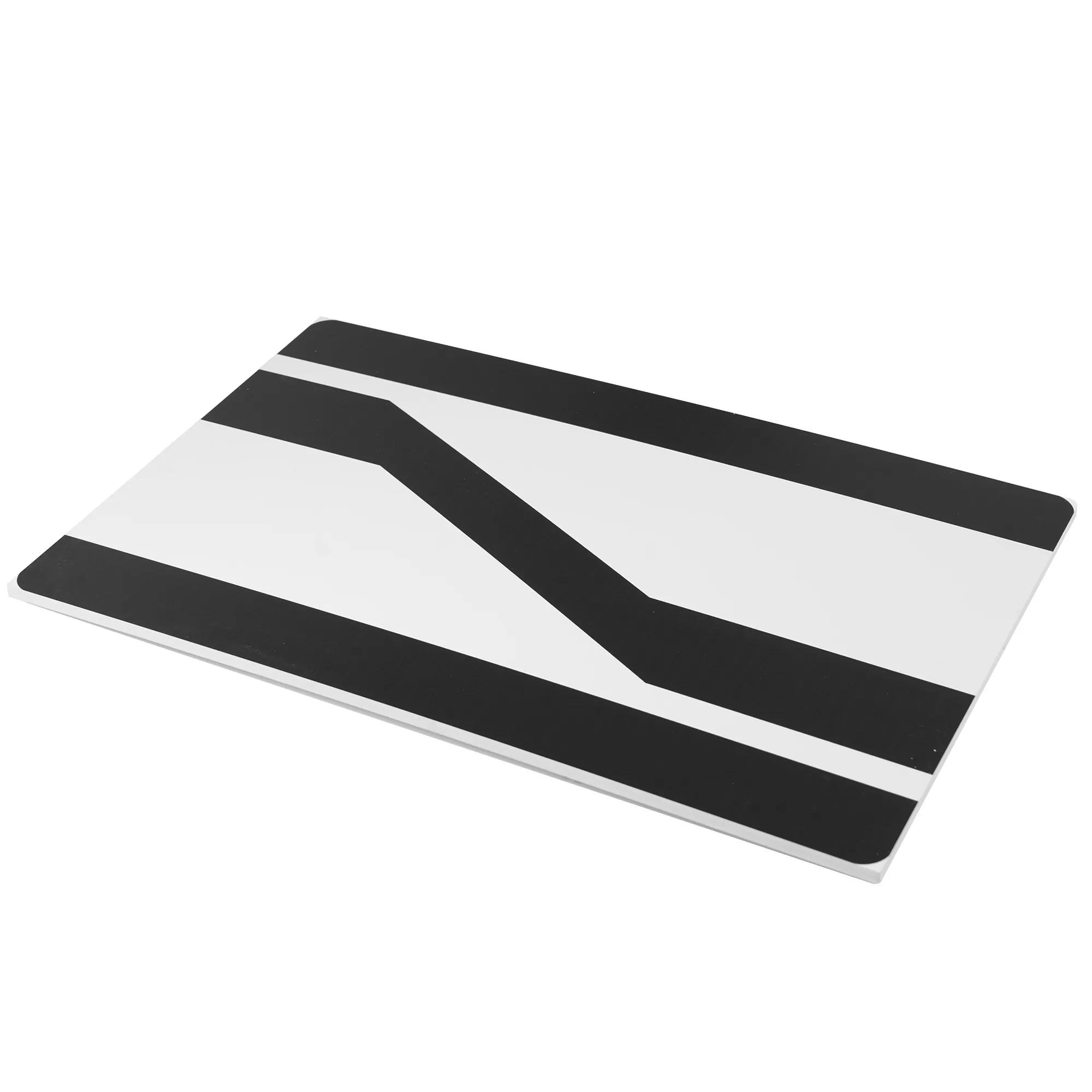

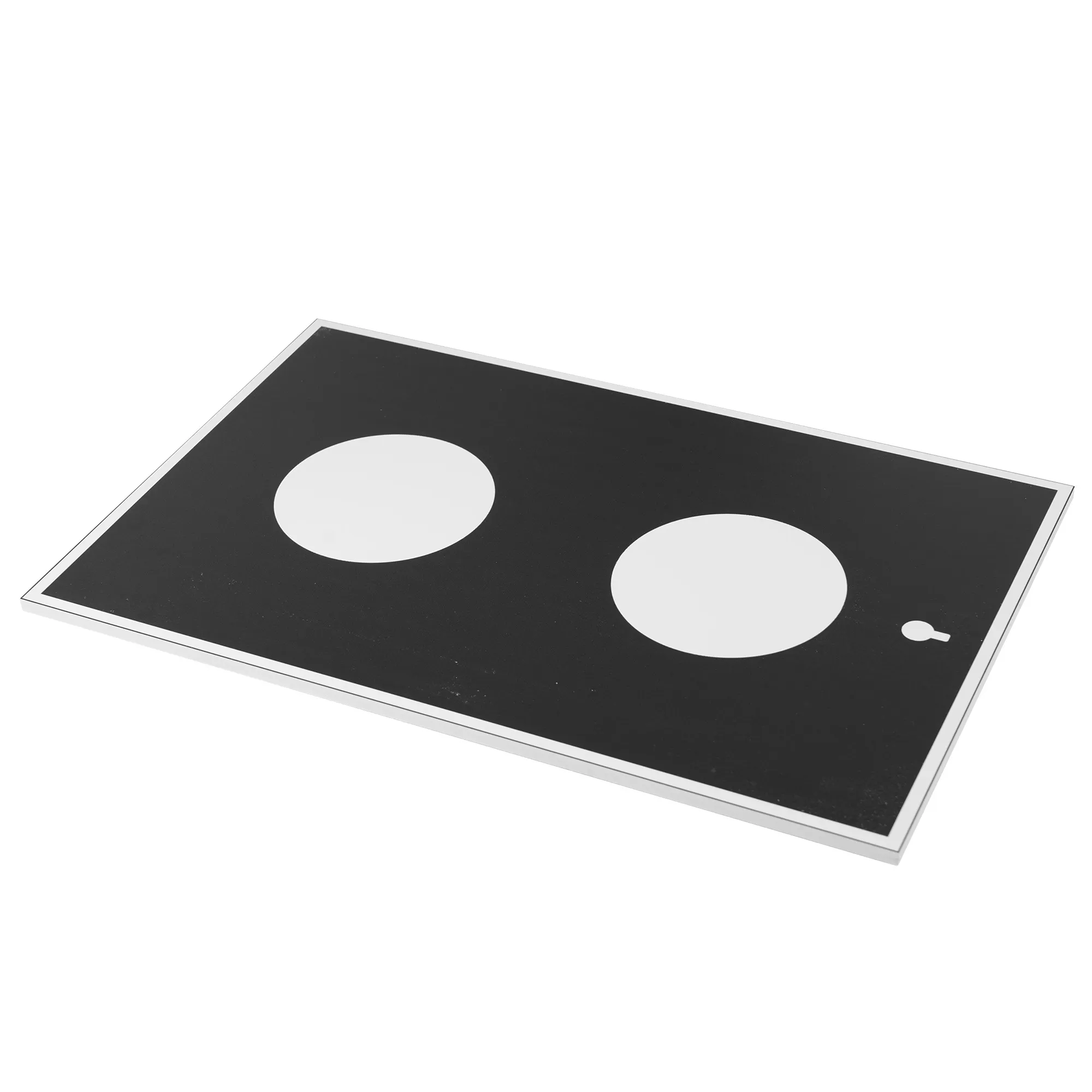

LDW & 360-Degree Calibration Board Set | Brand-specific targets for Honda, Toyota/Lexus, Mazda, Nissan/Infiniti, Geely, BYD, Volkswagen/Audi, Hyundai/Kia, and Mercedes-Benz |
Compatibility | Works with Dtronic, Meta, Langren, and Special Inspect diagnostic platforms |
Supported ADAS Functions | ACC, LDW, BSM, parking assist, pre-collision systems, front/side camera calibration, and 360-degree surround view calibration |
